Allotopic expression of ND6 restores vision in a mitochondrial disease model
Cheng Ai, Huiying Li, Jing Wu, Tianwei Zhou, Jing Wang, Shao-Hui Pan, Jun Yu, Douglas C. Wallace, Min-Xin Guan
Cheng Ai, Huiying Li, Jing Wu, Tianwei Zhou, Jing Wang, Shao-Hui Pan, Jun Yu, Douglas C. Wallace, Min-Xin Guan
View: Text | PDF
Research Article Genetics Ophthalmology

Allotopic expression of ND6 restores vision in a mitochondrial disease model

  • Text
  • PDF
Abstract

Mutations in mitochondrial DNA (mtDNA) cause various mitochondrial diseases that are currently incurable. Allotopic expression of nucleus-recoded mitochondrial genes represents a promising therapeutic strategy, given its demonstrated capacity to restore mitochondrial function in human cell models harboring mtDNA mutations. However, the in vivo evaluation of allotopic gene therapy has been hindered by optimization challenges and the lack of appropriate animal models. Here, we overcome these limitations by utilizing an optimized AAV2-ND6 construct with codon optimization and mitochondrial targeting sequence in a mouse model bearing the homoplasmic ND6P25L mutation, which recapitulates Leber hereditary optic neuropathy (LHON). High-dose administration of the AAV2-ND6 construct resulted in robust, sustained expression within the retina and optic nerve without apparent systemic toxicity. Strikingly, we compared the therapeutic efficacy in mutant mice at different ages and presymptomatic intervention with AAV2-ND6 effectively attenuated disease progression, mitigated retinal cellular deficiencies and optic nerve damage, and restored visual function in ND6P25L mice. Mechanistically, allotopic ND6 expression markedly rescued the mitochondrial dysfunction, corrected dysregulated retinol metabolism and phototransduction pathways, and suppressed apoptotic processes in the mutant retina. Our study validates the safety and therapeutic potential of allotopic expression in vivo and provides critical mechanistic insights into its role in treating LHON and other mitochondrial diseases.

Authors

Cheng Ai, Huiying Li, Jing Wu, Tianwei Zhou, Jing Wang, Shao-Hui Pan, Jun Yu, Douglas C. Wallace, Min-Xin Guan

×

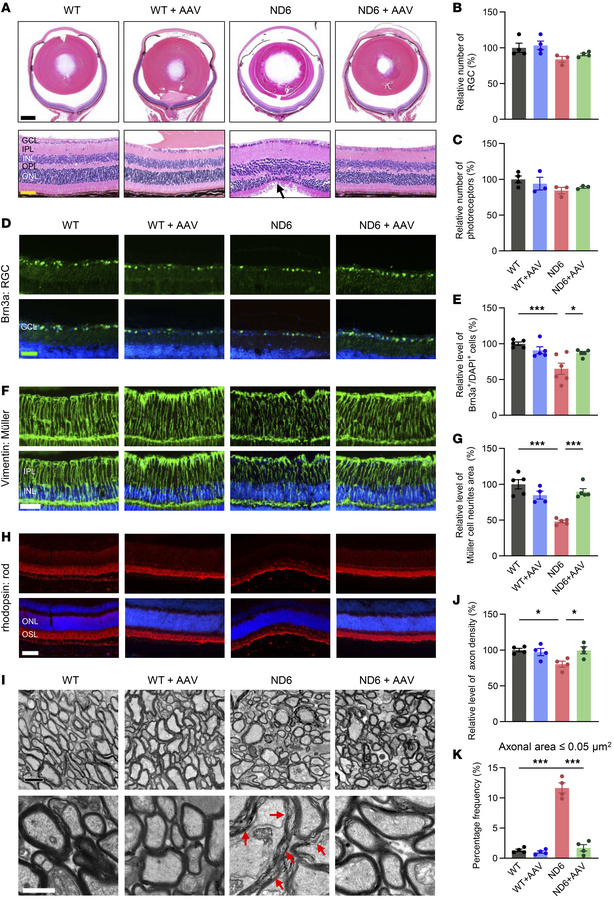

Figure 3

The recovery of retinal deficiency with allotopic ND6 expression.

Options: View larger image (or click on image) Download as PowerPoint
The recovery of retinal deficiency with allotopic ND6 expression.
(A) Re...
(A) Retinal section staining with H&E in various mice at 6 months of age. Lower panel showed the enlarged views to highlight layer alterations. The black arrow indicates an abnormality in the outer retina in ND6P25L mice without treatment. Scale bars: 500 μm (upper panel) and 50 μm (lower panel). (B and C) The number of RGCs (B) and photoceptors (C) measured from H&E staining in various mice (n = 3–4 mice). (D) Immunofluorescent staining of cryosection showing retinal section stained for Brn3a (green) for RGCs and with DAPI (blue) for nuclei. Scale bar: 50 μm. (E) Quantification of ratios of Brn3a-positive RGCs (n = 5–6 mice). (F) Immunofluorescent staining of cryosection showing retinal section stained for Vimentin for Müller glia and with DAPI. Scale bar: 50 μm. (G) Quantification of relative area of Vimentin-positive Müller glial process area (n = 4–5 mice). (H) Immunofluorescent staining of cryosection showing retinal section stained with rhodopsin (red) and DAPI. Scale bar: 100 μm. (I) Ultrastructural analysis of RGC axons in optic nerve in various mice. The red arrows indicate the demyelination of axons in ND6P25L mice. Scale bars: 2 μm (upper panel) and 1 μm (lower panel). (J and K) Quantification of axonal density (J) and percentage frequency of axon (area < 0.05 μm2) (K). n = 4 mice. Data in B, C, E, G, J, and K are shown as mean ± SEM. *P < 0.05; ***P < 0.001 by 1-way ANOVA with Bonferroni’s post hoc test. OSL, outer segment layer.
