Histopathology and spatial transcriptomics jointly map myofiber-specific pathological programs in mTORC1-driven myopathy
Jer-En Hsu, Qingyang Zhao, Weiqiu Cheng, Hyun Min Kang, Susan V. Brooks, Myungjin Kim, Jun Hee Lee
Jer-En Hsu, Qingyang Zhao, Weiqiu Cheng, Hyun Min Kang, Susan V. Brooks, Myungjin Kim, Jun Hee Lee
View: Text | PDF
Research Article Cell biology Muscle biology

Histopathology and spatial transcriptomics jointly map myofiber-specific pathological programs in mTORC1-driven myopathy

  • Text
  • PDF
Abstract

Skeletal muscle is composed of heterogeneous myofiber types and non-myocyte populations. Myopathies occur in many diseases, but the mechanisms driving these pathologies remain largely unknown, partly because conventional approaches cannot link histopathological features to molecular states at single-fiber resolution. To address this challenge, we brought histopathology and spatial transcriptomics together by applying high-resolution Seq-Scope technology to a mouse model of mTORC1 hyperactivation. Cross-sections from the extensor digitorum longus (EDL) and soleus (SOL), two muscles with distinct fiber-type compositions, were profiled to determine how transcriptome changes are linked to histopathological outcomes. mTORC1 hyperactivation elicited distinct, fiber type–dependent pathological programs. Type I and IIa fibers were largely resistant to mTORC1-induced pathology, exhibiting relatively limited morphological alterations. In contrast, type IIx fibers diverged into opposing fates: in SOL, they underwent abnormal enlargement associated with sustained growth signaling, cytoskeletal remodeling, and impaired proteostasis; in EDL, they developed basophilia associated with increased RNA content and lipid-, oxidative-, and nucleotide metabolism–related signatures. Within EDL, type IIb fibers displayed heterogeneity with discrete transcriptional states. Non-myocytic populations, including macrophages and fibroblasts, accumulated preferentially in SOL, forming a fibrotic microenvironment associated with inflammation, remodeling, and hypertrophy. These findings provide a link between histopathological phenotypes and molecular states at single-fiber resolution.

Authors

Jer-En Hsu, Qingyang Zhao, Weiqiu Cheng, Hyun Min Kang, Susan V. Brooks, Myungjin Kim, Jun Hee Lee

×

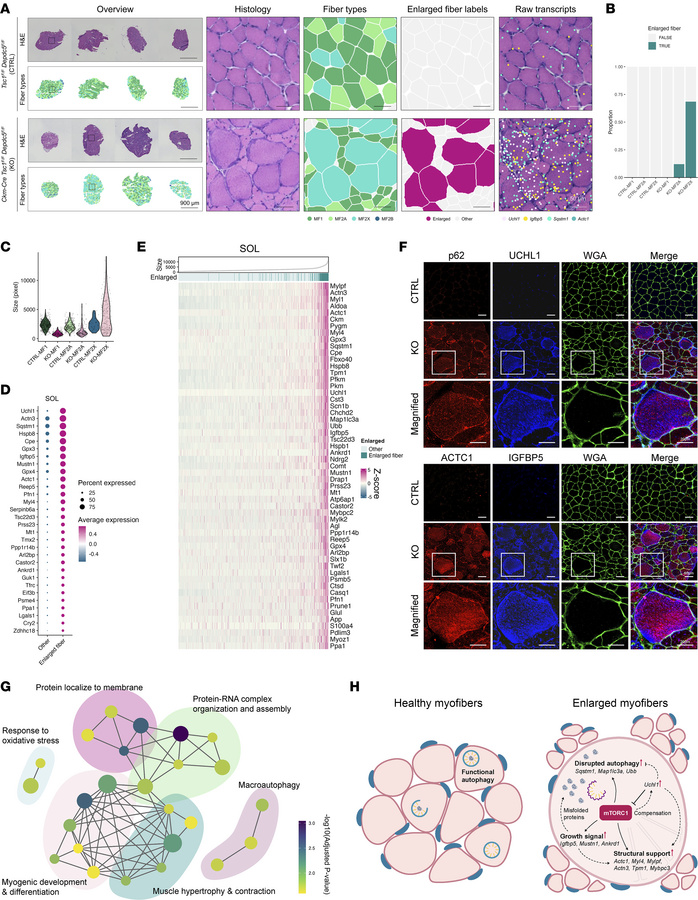

Figure 4

Type IIx myofibers in SOL undergo hypertrophy with structural remodeling.

Options: View larger image (or click on image) Download as PowerPoint
Type IIx myofibers in SOL undergo hypertrophy with structural remodeling...
(A) Spatial images of SOL sections. Left: histology overview of 4 control sections (top) and 4 mutant sections (bottom) overlaid with fiber type images. Right: spatial images of magnified boxed area from corresponding overview, presented from left to right as histology, fiber types, enlarged fiber labels, and raw transcripts plotted as colored dots. Scale bars: 900 μm and 50 μm. (B) Prevalence of enlarged fibers in different myofiber clusters of SOL quantified and presented as a bar graph. (C) Size of fibers in different myofiber clusters of SOL calculated and presented as a violin plot. One pixel corresponds to ~0.57 μm2. (D) Expression of genes highly upregulated in enlarged fibers presented in a dot plot. (E) Correlation between fiber size and gene expression. Myofibers (x axis) are ordered from small to large. Positively correlated genes (y axis) are ranked by correlation strength. The expression level of the genes is colored based on z scores. RNA counts within a single fiber were normalized by fiber size to estimate RNA density. (F) Immunostaining of indicated proteins in control or mutant SOL muscle. WGA staining (green) outlines myofiber borders. Staining was performed on 2 serial sections (top and bottom). Boxed areas highlighting an enlarged fiber are magnified at the bottom. Representative images are shown from a single staining experiment. Scale bars: 20 μm and 50 μm. (G) GO enrichment network based on genes upregulated in enlarged fibers. Pathways grouped by functional similarity. Node size corresponds to the number of genes associated with each pathway, and node color reflects enrichment significance determined by one-sided Fisher’s exact test (adjusted P value). For the complete results with GO term names, see Supplemental Figure 5F. (H) Schematic diagram illustrating transcriptional signatures associated with pathological hypertrophy in mTORC1-activated type IIx myofibers in SOL.
