Characterization of the clonal hierarchy and immunophenotype of PTPN11 mutations in acute myeloid leukemia
Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd
Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd
View: Text | PDF
Research Article Hematology Oncology

Characterization of the clonal hierarchy and immunophenotype of PTPN11 mutations in acute myeloid leukemia

  • Text
  • PDF
Abstract

Mutations in protein tyrosine phosphatase non-receptor type 11 (PTPN11) have been considered late acquired mutations in acute myeloid leukemia (AML) development. Using single-cell DNA sequencing, we found that PTPN11 mutations can occur as initiating events in some patients with AML when accompanied by strong oncogenic drivers, commonly NPM1 mutations. The resulting AML has a diverse set of variably differentiated myeloid cells with few myeloid cells that lack leukemic mutations. The role of Ptpn11 as a codriver was confirmed in a murine model that exhibits an AML phenotype with a comparable immune diversity that is serially engraftable and reconstituted from early precursor cells. Furthermore, lineage-negative bone marrow cells from these mice reconstitute the full diversity of mature myeloid cells, and these cells exhibit an altered cytokine response after physiologic stimulation. Our work highlights how PTPN11-mutated AML is derived from a multitude of codominant and late acquired aberrations that have a previously unrecognized differentiated myeloid clonal expansion potentially contributing to pathogenesis of the disease.

Authors

Sydney Fobare, Chia Sharpe, Kate Quinn, Kinsey Bryant, Linde A. Miles, Robert L. Bowman, Carolyn Cheney, Casie Furby, Marissa Long, Kaytlynn Fyock, Ben Wronowski, James R. Lerma, Krzysztof Mrózek, Deedra Nicolet, Thomas M. Sesterhenn, Megan E. Johnstone, Jianmin Pan, Shesh N. Rai, Chandrashekhar Pasare, Nives Zimmermann, Wen-Mei Yu, Cheng-Kui Qu, Andrew Carroll, Richard Stone, Eunice S. Wang, Jonathan Kolitz, Bayard Powell, John P. Perentesis, Ann-Kathrin Eisfeld, Erin Hertlein, John C. Byrd

×

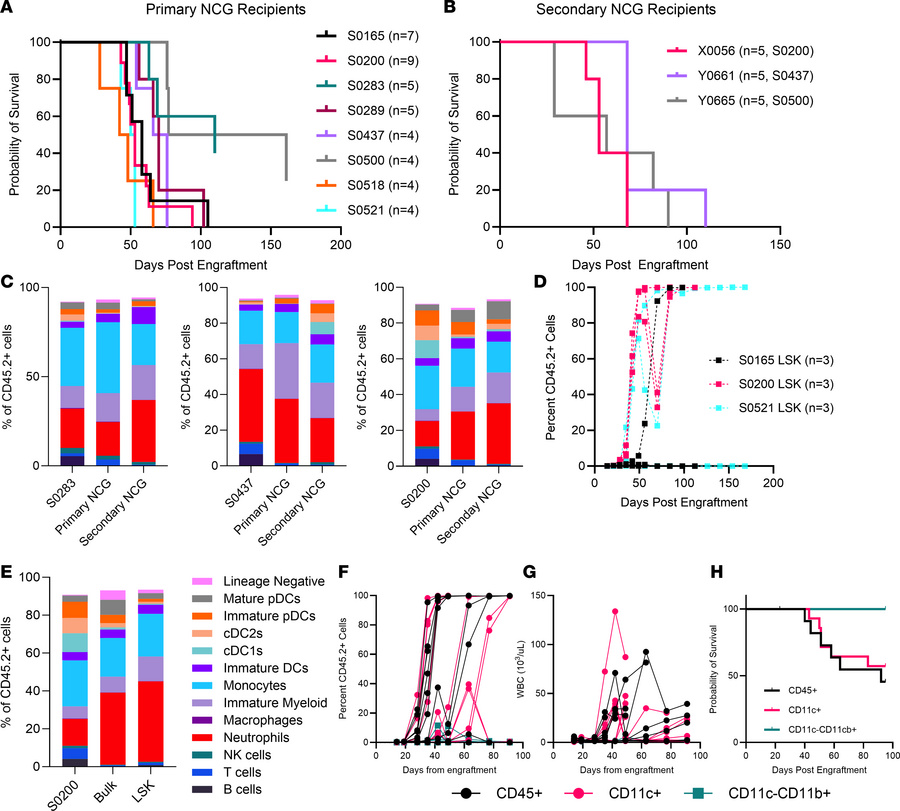

Figure 6

Engraftment of Npm1cA/Ptpn11E76K splenocytes into immunodeficient mice.

Options: View larger image (or click on image) Download as PowerPoint
Engraftment of Npm1cA/Ptpn11E76K splenocytes into immunodeficient mice.
...
(A) Overall survival in primary NCG engraftment in 3 independent experiments. (B) Overall survival in secondary NCG engraftment. (C) Summary of spleen immune subsets as a proportion of total CD45.2+ cells in primary AML donors compared to primary and secondary NCG recipients meeting the survival endpoint from 2 independent experiments. (D) Frequency of donor-derived CD45.2+ cells over time in the peripheral blood from NCG mice engrafted with LSK cells. (E) Immune cell subsets in spleen from 1 donor (S0200) and recipients of either bulk splenocytes (n = 4 recipients) or LSK cells (n = 3 recipients) at endpoint. FACS-isolated CD45+, CD11c+, or CD11c–CD11b+ cells were sorted from 3 donors. (F) Frequency of donor-derived CD45.2+ cells over time in the peripheral blood. (G) White blood cell (WBC) and (H) overall survival of NCG mice engrafted with CD45+ (n = 12), CD11c+ (n = 11), or CD11c–CD11b+ (n = 8) cells. Data are presented as the mean. pDCs, plasmacytoid dendritic cells; cDC2s, conventional dendritic cells 2; cDC1s, conventional dendritic cells 1; DCs, dendritic cells; NK cells, natural killer cells.
