CD47 blockade augmentation of trastuzumab antitumor efficacy dependent on antibody-dependent cellular phagocytosis
Li-Chung Tsao, Erika J. Crosby, Timothy N. Trotter, Pankaj Agarwal, Bin-Jin Hwang, Chaitanya Acharya, Casey W. Shuptrine, Tao Wang, Junping Wei, Xiao Yang, Gangjun Lei, Cong-Xiao Liu, Christopher A. Rabiola, Lewis A. Chodosh, William J. Muller, Herbert Kim Lyerly, Zachary C. Hartman
Li-Chung Tsao, Erika J. Crosby, Timothy N. Trotter, Pankaj Agarwal, Bin-Jin Hwang, Chaitanya Acharya, Casey W. Shuptrine, Tao Wang, Junping Wei, Xiao Yang, Gangjun Lei, Cong-Xiao Liu, Christopher A. Rabiola, Lewis A. Chodosh, William J. Muller, Herbert Kim Lyerly, Zachary C. Hartman
View: Text | PDF
Research Article Immunology Oncology

CD47 blockade augmentation of trastuzumab antitumor efficacy dependent on antibody-dependent cellular phagocytosis

  • Text
  • PDF
Abstract

The HER2-specific monoclonal antibody (mAb), trastuzumab, has been the mainstay of therapy for HER2+ breast cancer (BC) for approximately 20 years. However, its therapeutic mechanism of action (MOA) remains unclear, with antitumor responses to trastuzumab remaining heterogeneous and metastatic HER2+ BC remaining incurable. Consequently, understanding its MOA could enable rational strategies to enhance its efficacy. Using both murine and human versions of trastuzumab, we found its antitumor activity dependent on Fcγ receptor stimulation of tumor-associated macrophages (TAMs) and antibody-dependent cellular phagocytosis (ADCP), but not cellular cytotoxicity (ADCC). Trastuzumab also stimulated TAM activation and expansion, but did not require adaptive immunity, natural killer cells, and/or neutrophils. Moreover, inhibition of the innate immune ADCP checkpoint, CD47, significantly enhanced trastuzumab-mediated ADCP and TAM expansion and activation, resulting in the emergence of a unique hyperphagocytic macrophage population, improved antitumor responses, and prolonged survival. In addition, we found that tumor-associated CD47 expression was inversely associated with survival in HER2+ BC patients and that human HER2+ BC xenografts treated with trastuzumab plus CD47 inhibition underwent complete tumor regression. Collectively, our study identifies trastuzumab-mediated ADCP as an important antitumor MOA that may be clinically enabled by CD47 blockade to augment therapeutic efficacy.

Authors

Li-Chung Tsao, Erika J. Crosby, Timothy N. Trotter, Pankaj Agarwal, Bin-Jin Hwang, Chaitanya Acharya, Casey W. Shuptrine, Tao Wang, Junping Wei, Xiao Yang, Gangjun Lei, Cong-Xiao Liu, Christopher A. Rabiola, Lewis A. Chodosh, William J. Muller, Herbert Kim Lyerly, Zachary C. Hartman

×

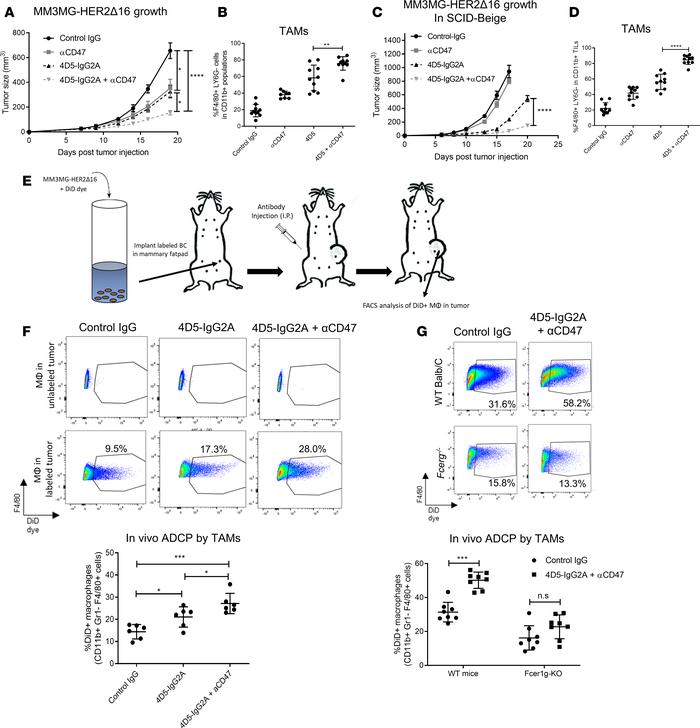

Figure 4

CD47 blockade increases therapeutic efficacy of mouse trastuzumab and augments tumor-associated macrophage (TAM) expansion and phagocytosis.

Options: View larger image (or click on image) Download as PowerPoint
CD47 blockade increases therapeutic efficacy of mouse trastuzumab and au...
(A) Tumor growth experiment (as in Figure 1B) was repeated using CD47 blockade antibody (MIAP410, 300 μg per mouse) alone or in combination with 4D5-IgG2a. (B) TAM populations were analyzed by FACS after tumor volume reached >1000 mm3. Analysis of additional immune cell types are shown in Supplemental Figure 4D. Data represent the mean ± SEM. n = 8–10. (C) Repeat of similar tumor growth experiment and treatments in SCID-beige mice. (D) TAM populations from SCID-beige experiment were analyzed by FACS. n = 10. (E) Schematic representation of in vivo antibody-dependent cellular phagocytosis (ADCP) experiment. MM3MG-HER2Δ16 cells were labeled with Vybrant DiD dye and implanted (1 × 106 cells) into mammary fat pads of BALB/c mice. Once tumor volume reached approximately 1000 mm3, mice were treated with control antibody, 4D5-IgG2A (200 μg), or 4D5-IgG2A in combination with MIAP410 (300 μg). On the next day, tumors were harvested and tumor-phagocytic macrophages were quantified by FACS. (F) Representative FACS plots and graphical summary showing frequency of macrophages (CD11b+F4/80+LY6G–LY6C–) that have phagocytosed DiD-labeled tumor cells. n = 6. (G) A similar in vivo ADCP experiment was repeated in Fcer1g–/– mice. n = 8. Significance was determined by 2-way ANOVA with Tukey’s multiple-comparisons test (A and C) or 1-way ANOVA with Tukey’s multiple-comparisons test (B, D, F, and G). All data represent the mean ± SEM. *P < 0.05, **P < 0.01, ***P < 0.001, ****P < 0.0001.
